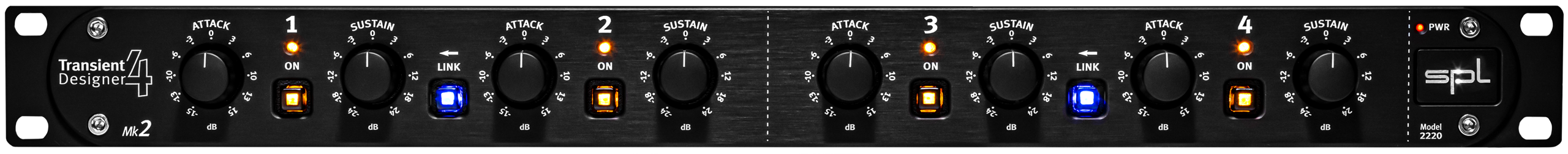

SPL Transient Designer 4 Mk2

*Special Order

“Most of the people who’ve heard it have been seriously impressed by the results. What it can achieve transcends by far what can be done using an ordinary compressor, in much the same way as the SPL Vitalizer takes tonal shaping beyond the conventional equaliser.” – Sound On Sound

Next-Level Transient Shaping

The SPL Transient Designer 4 Mk2 is a four-channel dynamics processor known for its ability to reshape the attack and sustain of audio signals without relying on threshold settings. It’s a popular tool for mixing drums, but also versatile enough for use on vocals, pianos, and other instruments. Reviewers praise its ease of use, transparent sound, and ability to “move the mic” in the mix, even after recording.

Transient Designer – A Revolution in Dynamics Processing

The SPL Transient Designer gives you the power to shape audio envelopes with unmatched precision—completely independent of signal level (no threshold needed). Effortlessly speed up or soften transients, extend or shorten sustain — using just two intuitive controls: Attack and Sustain.

All time constants adapt automatically in a musically responsive way, optimising themselves to match the unique characteristics of the incoming signal.

Differential Envelope Technology

SPL’s Differential Envelope Technology (DET) enables precise, level-independent processing of a signal’s dynamic characteristics using differential envelope tracking. With just two controls, you can intuitively shape the transient response. The intelligent envelope trackers adapt in real time to the natural behavior of the input signal, ensuring optimal results at every moment.

Stereo Signal Processing

The SPL Transient Designer 4 MK2 offers several useful features beyond individual channel control. With the Link function, you can process stereo signals by linking channels 1+2 or 3+4—where the left channel acts as the master.

Additional convenient features include an On switch for instant bypass, allowing you to easily compare processed and unprocessed signals. A Signal (Sig) LED also provides visual feedback, lighting up when the input signal exceeds -20 dB.

Features

• Differential Envelope Technology (DET) processes attack and sustain levels independently for incredible transient shaping
• Only 2 controls needed: Attack and Sustain
• Attack shapes the transient phase of a signal by +/- 15dB
• Sustain shapes the sustain phase of a signal by +/- 24dB
• On switch allows for quick A/B’ing of processed and unprocessed signals
• Link enables processing of stereo signals of Channels 1+2 or Channels 3+4
• Signal (Sig) LED displays if an input signal has a level greater than -20dB
• Black powder coated high-quality steel housing
• 4mm thick black anodized aluminum faceplate
• Knobs milled from solid aluminum

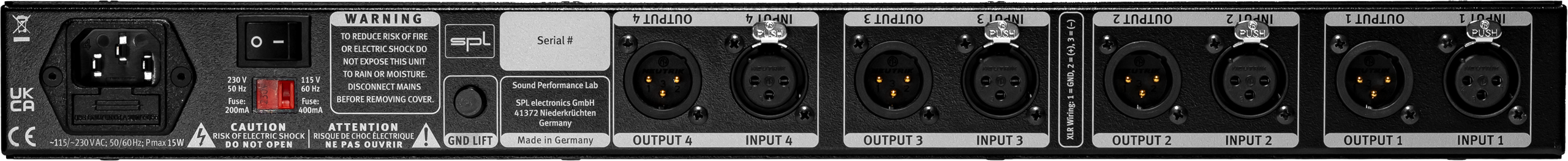

• All 4 channels feature Neutrik XLR sockets with gold-plated contacts and balanced signal transmission of +6dB nominal level
• Frequency Range (-3dB): 10Hz–100kHz
• THD+N (0dBu, 10Hz–22kHz): -90dB
• Noise (A-weighted): -97dB
• Dynamic range: 118dB
