SPL BiG (Studio) Stereo Image Processor

*Special Order

Your Mixes Deserve to Sound BiG

We know you want your mixes to sound BiG — and that’s exactly what SPL’s BiG Studio delivers. This 19-inch rackmount stereo image processor builds on the success of SPL’s acclaimed 500 Series BiG module, which earned a NAMM TEC Award in 2023.

While the original module was a solid-state design, BiG Studio takes things further with a vacuum tube circuit that adds rich, punchy harmonic character — elevating this innovative concept into an entirely new sonic dimension.

Dubbed by SPL as the “Bigger Maker,” BiG Studio offers a fresh and powerful approach to stereo soundstage processing. For mixes that sound massive, vibrant, and jump right out of the speakers, BiG Studio is the tool to make it happen.

Studio Magic

The rich, punchy, and massive results delivered by BiG Studio might feel like magic — but the device is elegantly simple in its design. At its core, a difference signal is derived from the input, processed through an analog filter network, and then blended back into the source via a specialized mix stage.

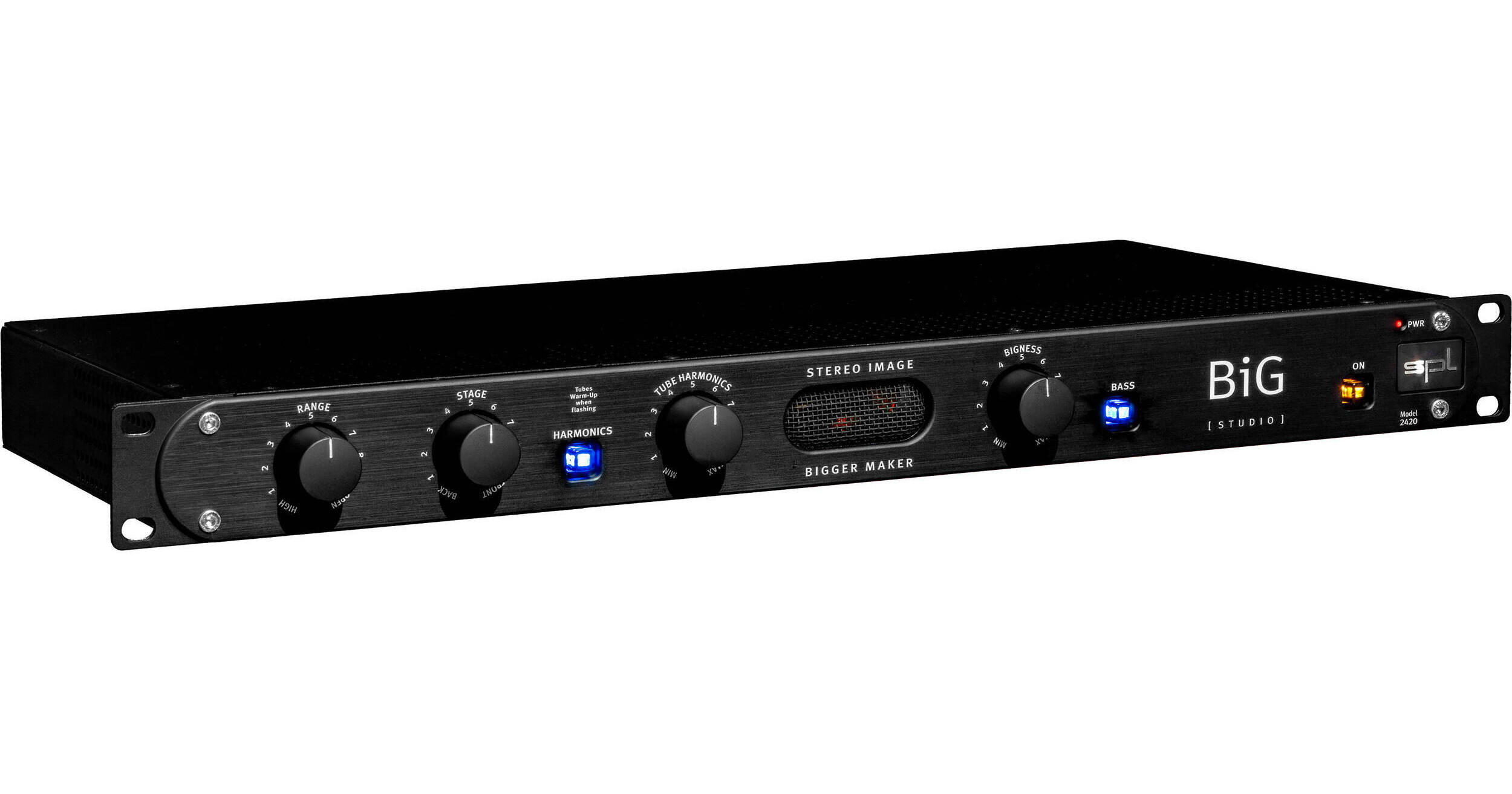

With its intuitive controls, achieving impressive results is fast and straightforward. Start by selecting a frequency range with the Range control, then shape the depth of the soundstage using the Stage control. The Bigness knob adjusts the intensity of the processing, while the Bass button at the end of the BiG signal chain engages a passive bass enhancement, based on the AirBass circuit from SPL’s acclaimed Iron mastering compressor.

BiG Studio makes it effortless to expand your stereo image and add harmonic richness, turning your mixes into something truly monumental.

Bring Your Mixes to Life with Tube Harmonics

Beyond the controls BiG Studio shares with its 500 Series sibling, the rackmount unit introduces unique tube-driven features. The Harmonics button engages the vacuum tube circuit’s harmonic generation, while the Tube Harmonics control lets you dial in the intensity of these rich, dynamic harmonics.

BiG Studio’s tube circuit enhances the harmonic spectrum of every source, adding depth, warmth, and a larger-than-life presence with vivid, hyper-detailed coloration. When the Harmonics button flashes, the tube is warming up; it glows solid blue once the tube reaches optimal operating temperature, ready to deliver its full sonic magic.

Engineered to Last

SPL is renowned for the rock-solid build quality of its products, and BiG Studio is no exception. Its 1U front panel is crafted from 4mm-thick black anodized aluminum, complemented by chunky knobs milled from solid aircraft-grade aluminum, making it a unit built to last.

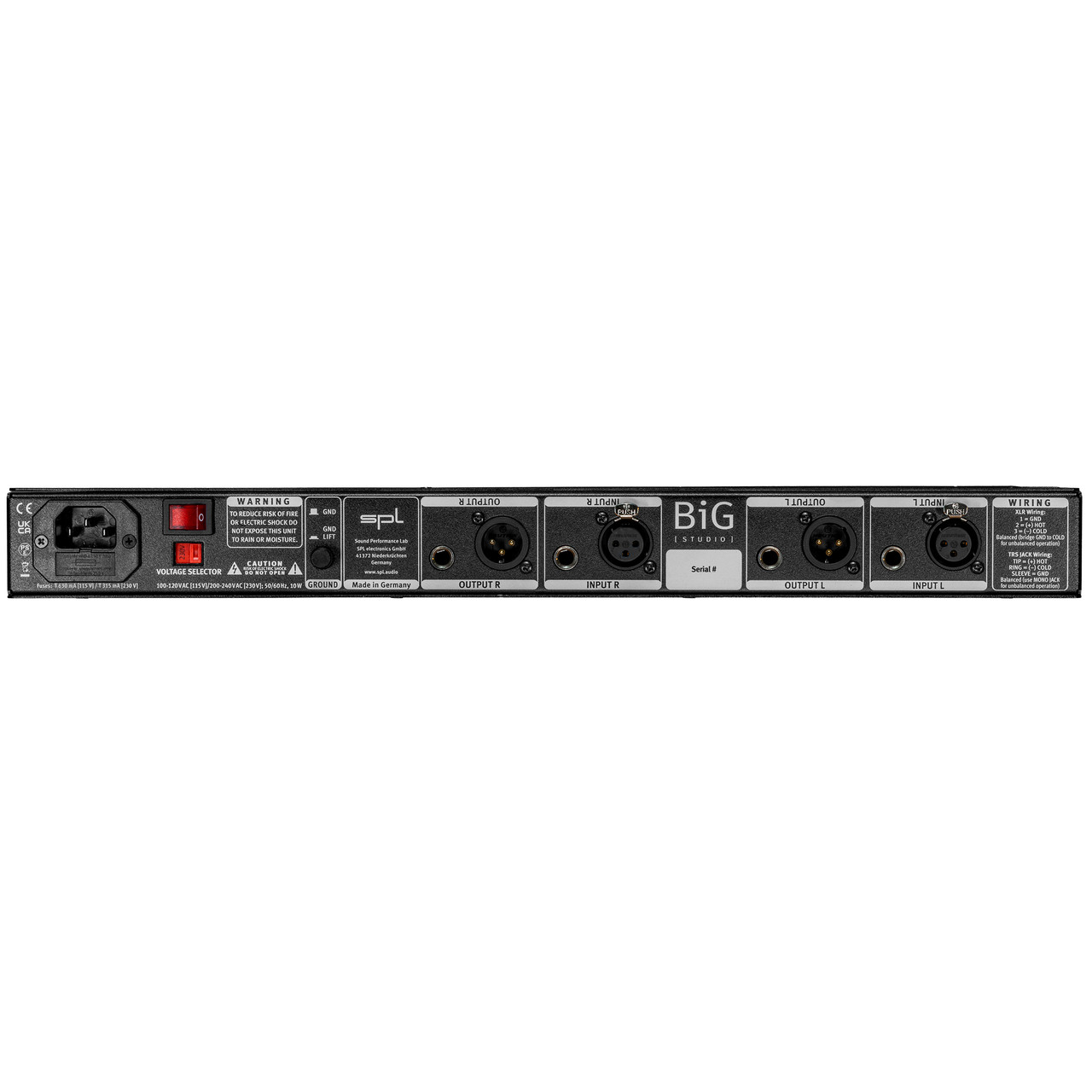

Inside, a robust ±18V audio voltage provides ample headroom to handle large signal peaks without clipping, contributing to the processor’s open, natural sound. All inputs and outputs feature gold-plated Neutrik XLRs and TRS jacks wired in parallel, with electronically balanced signal transmission at a nominal +6dB. A ground switch allows you to disconnect the internal ground from the chassis, eliminating ground loops and ensuring clean, noise-free operation.

BiG Studio is engineered to withstand the rigors of professional studios while delivering uncompromising sonic performance.

Features

• Stereo image processor and tube harmonics generator
• Range control selects frequency range
• Stage control moves selected frequency range forward or backward in the soundstage
• Harmonics button activates harmonics generation in the tube circuit
• Tube Harmonics control adjusts the intensity of the tube harmonics
• Bigness control sets overall processing intensity
• Bass button switches in a passive bass boost
• Bypass toggle for easy wet/dry comparison
• Frequency response (-3dB): 10Hz–200kHz
• THD+N (0dBu, 10Hz–22kHz): 0.0035%
• Noise (A-weighted): -97.5dBu
• Dynamic range: 120dB
• Bass frequency: 42Hz; Bass boost: 2dB
• Harmonics frequency: 6kHz; Harmonics boost (max.): 9dB
• I/O: gold-plated Neutrik XLRs and TRS jacks (connected in parallel)
• Internal linear power supply with a shielded toroidal transformer
• Mains (selectable): 115VAC/60Hz, 230VAC/50Hz
• Crafted in SPL’s production facility in Niederkrüchten, Germany
